Drawer slides are commonly used hardware in furniture. They are also called guide rails or slides. They are a type of hardware that connects the cabinet and the pull-out unit. In this issue, let’s get to know the drawer slides.
Characteristics of drawer slides
Drawer slides generally fall into three categories:

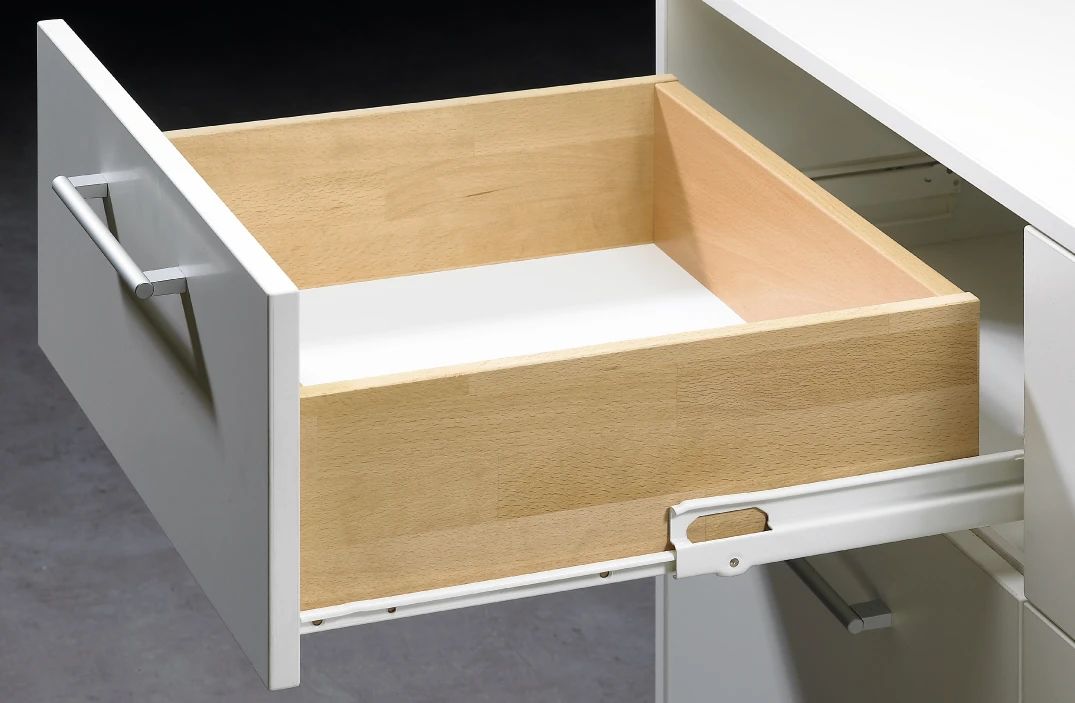

01 Roller type drawer slide
Roller drawer slides with self-closing and pull-out positioning functions
1. The drawer slide has a simple structure and is easy to install.
2. The drawer slides are exposed, which greatly reduces the appearance.
3. The drawer is easy to pull out and has low safety.
1. The drawer slide has a simple structure and is easy to install.
2. The drawer slides are exposed, which greatly reduces the appearance.
3. The drawer is easy to pull out and has low safety.

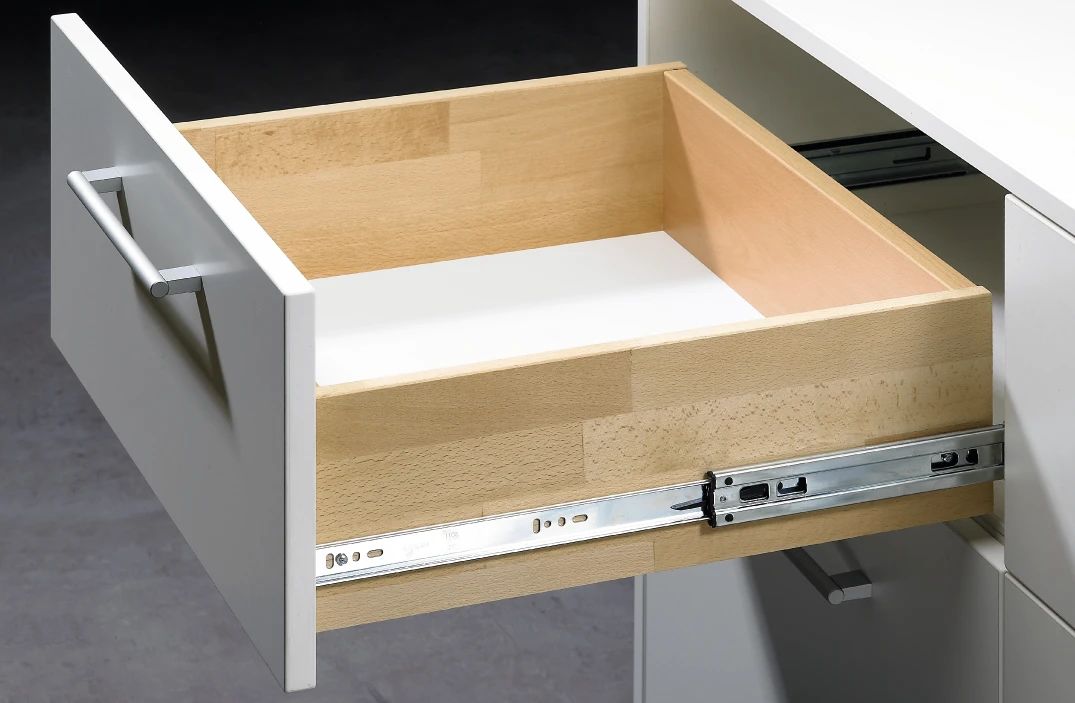

02 Side mounted ball drawer slides
The side-mounted ball drawer slide has three functions: push lock, damping, and push.
1. Installed on the side of the drawer, easy to install and remove
2. The drawer slides are exposed, which greatly reduces the appearance.
3. Weak lateral stability
1. Installed on the side of the drawer, easy to install and remove
2. The drawer slides are exposed, which greatly reduces the appearance.
3. Weak lateral stability

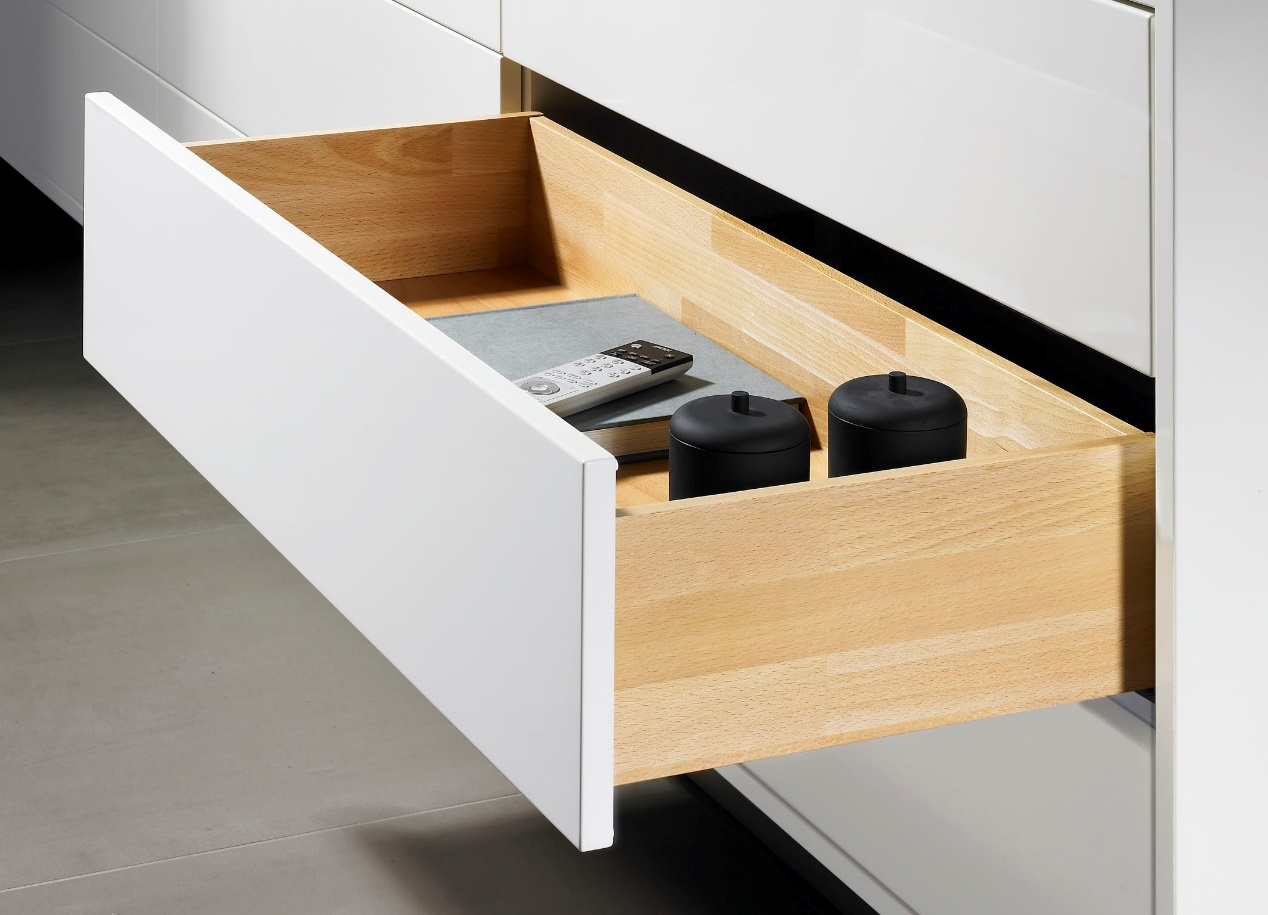

03 Hidden bottom rail
1. Installed at the bottom of the drawer, the drawer structure is standardized
2. Hidden drawer slides improve aesthetics
3. Steel ball linear bearing principle, smooth sliding
4. Drawer space utilization is higher
2. Hidden drawer slides improve aesthetics
3. Steel ball linear bearing principle, smooth sliding
4. Drawer space utilization is higher
Classification of slide rails
01 Classification by pull distance
Super fully pull-out drawer slide: The drawer is completely pulled out, and the drawer back panel is exposed outside the cabinet side panel after pulling out. It is generally a three-section slide rail structure.

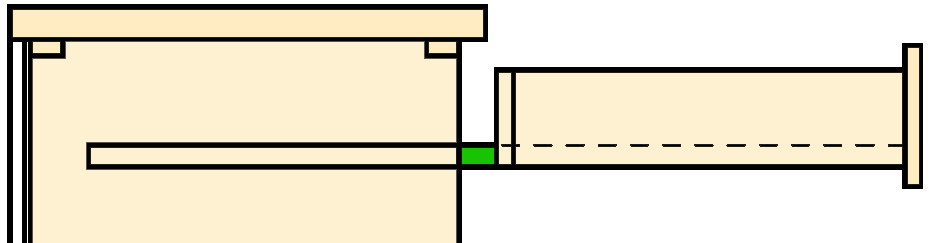

Fully pull-out drawer slide: the drawer space is completely pulled out, usually a three-section slide structure.

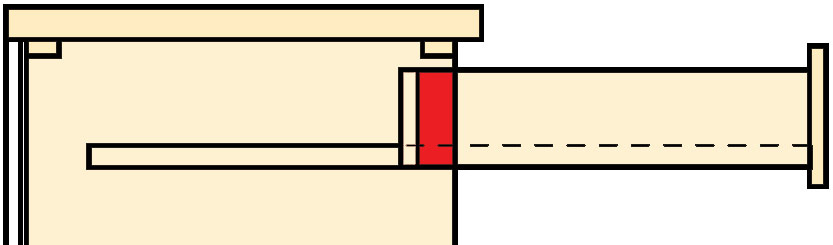

Partially pulled out drawer slides: Part of the drawer space is not pulled out, usually a two-section slide structure.
02 Classification by function
Push lock function: When the drawer is opened, the drawer panel needs to be pushed continuously for the drawer to be completely closed.
Damping function: When the drawer is opened, just push the drawer panel hard from the front, and the drawer will close slowly and silently.
Push and pop function: When the drawer is closed, just push the panel and the drawer will open.
Push-to-elastic damping function: combines damping function and push-to-elastic function.
03 Classification by installation method

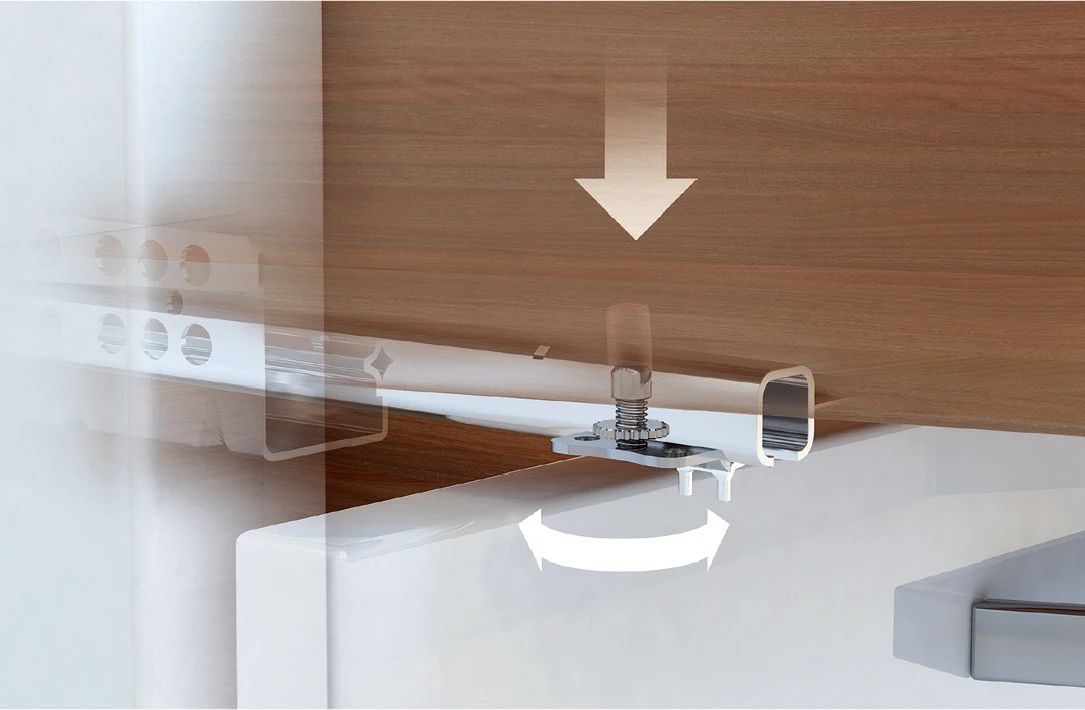

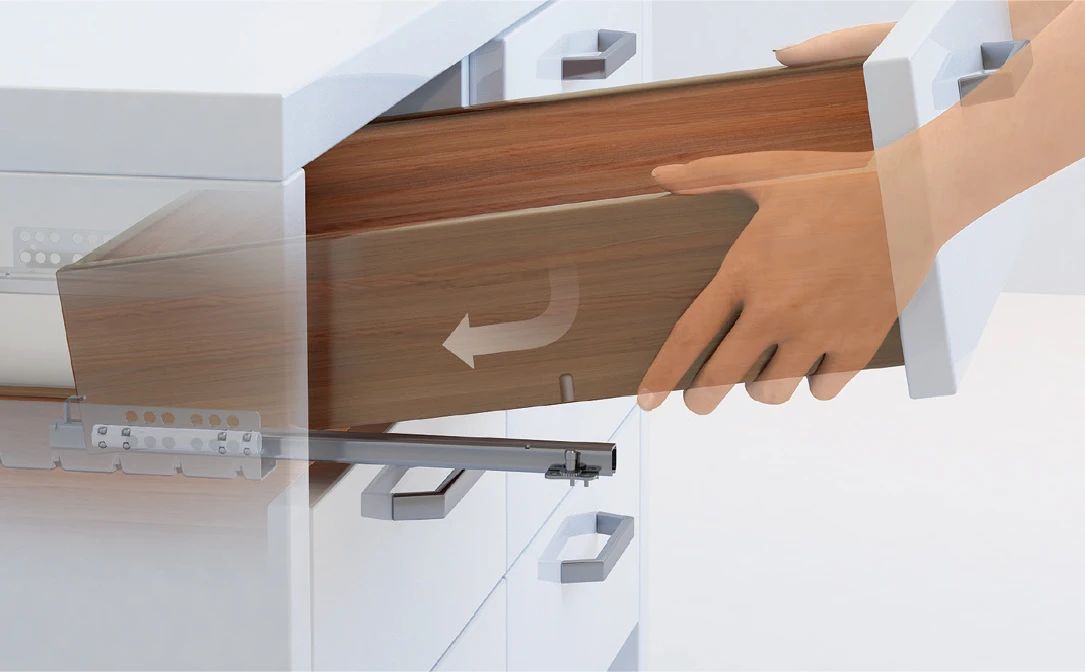

Plug-in installation: The drawer is inserted from above the open drawer slide, and the two hooks at the far end of the drawer slide hook the two pre-drilled holes behind the drawer back panel. Gently press down on the drawer to secure the holes under the side panels to the drawer slide rail positioning pins. Positioning pins secure the drawer precisely and securely. When disassembling, just pull the drawer out and lift it up. The hand wheel on the positioning pin can accurately adjust the height of the drawer panel.

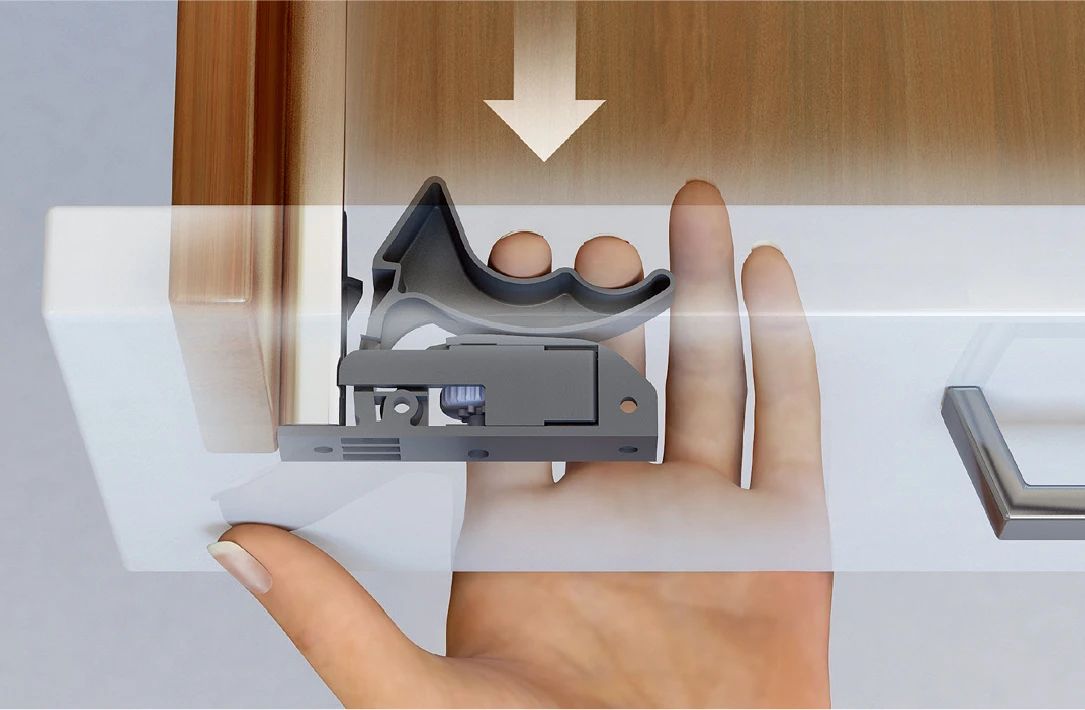

Push-in installation: Place the drawer horizontally on the drawer slide and push it inward. Connectors fixed to the underside of the drawer automatically lock and hold the drawer and slide rails in place. When disassembling, press the connecting piece and the drawer can be disassembled. The drawer height adjustment device is integrated into the connector, and the adjustment hand wheel allows for stepless adjustment of the height of the drawer panel.
Maintenance of drawer slides
01 Pay attention when installing
Use activated carbon, green plants, and ventilation to remove formaldehyde
Solid wood painted furniture must be installed after the paint is clear and adequate ventilation must be ensured in the early stage.
During the installation process, the drawer slides must be properly protected. Foreign objects such as wood chips, metal chips, and sand dust should be prevented from entering the inside of the drawer slide rails; dust and dust floating on the surface of the drawer slide rails should be removed in time.
02 Pay attention in life
It is recommended to use a clean dry cloth to wipe the surface
It is recommended to clean and dust regularly
It is recommended to use a clean dry cloth to wipe the surface
It is recommended to clean and dust regularly
03 Attention in special circumstances
Bathroom: Because the humidity in the bathroom is too high, it is recommended to use a dry cloth to wipe the surface of the drawer slides and increase the frequency of ventilation.
In the kitchen: If you accidentally come into contact with daily corrosive products, it is recommended to use a dry cloth to clean the surface of the drawer slides in time, wipe it dry and keep it dry.
Bathroom: Because the humidity in the bathroom is too high, it is recommended to use a dry cloth to wipe the surface of the drawer slides and increase the frequency of ventilation.
In the kitchen: If you accidentally come into contact with daily corrosive products, it is recommended to use a dry cloth to clean the surface of the drawer slides in time, wipe it dry and keep it dry.
