How to Install Drawers on Industrial Aluminum Profiles

author: Eva
2024-01-04

When constructing frameworks for workbenches, tool cabinets, and other structures using industrial aluminum profiles, it's common to install sliding drawers for convenient material management and storage. Ever wondered how drawers are installed on industrial aluminum profiles? Today, I'll walk you through the process.

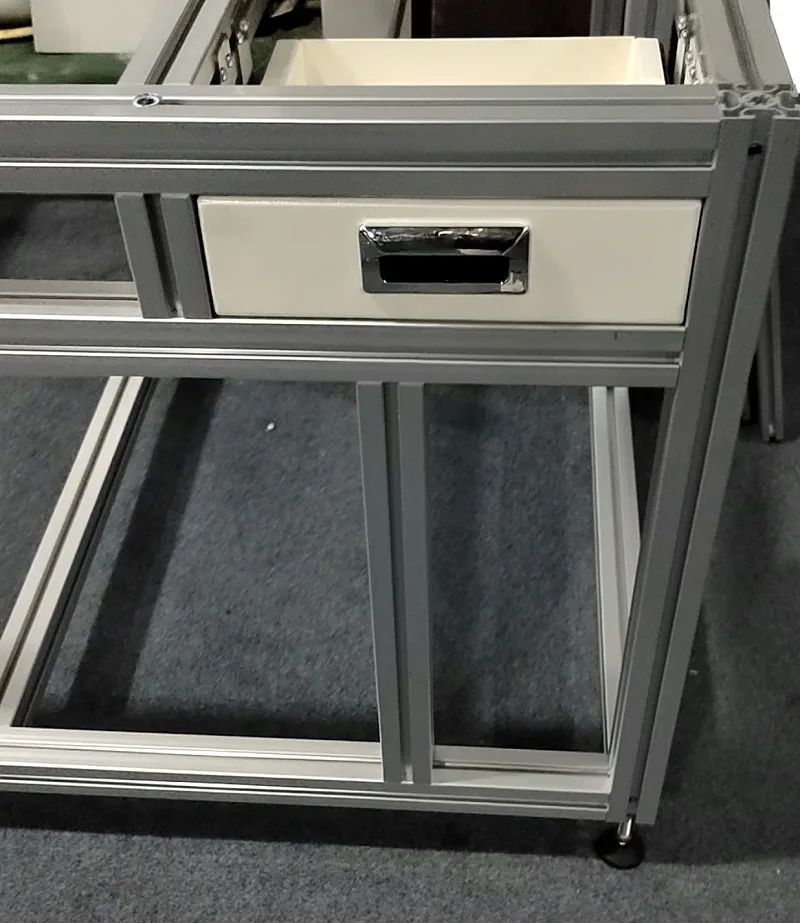

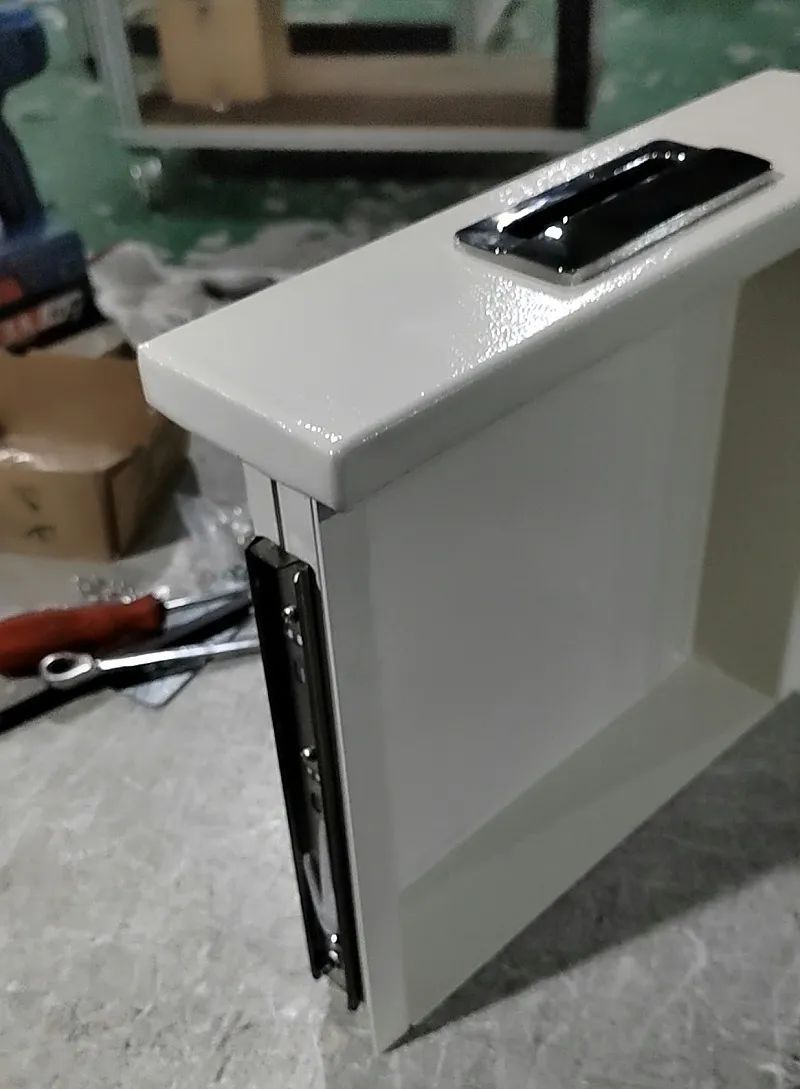

Firstly, design the framework with the drawers on a drawing. Note that the drawers need custom design, and the ones in the illustration are crafted from bent parts, customizable based on specific requirements. Next, use guides; fix the smaller guide on the drawer, and below is the illustration of the fixed result.

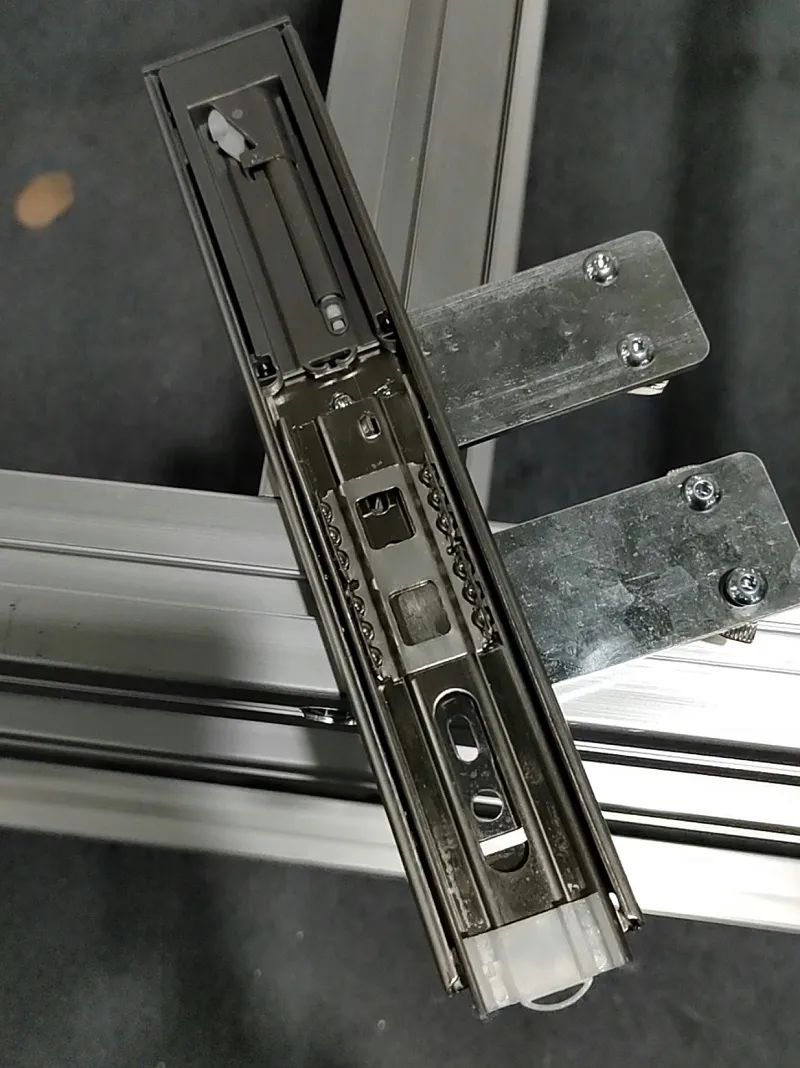

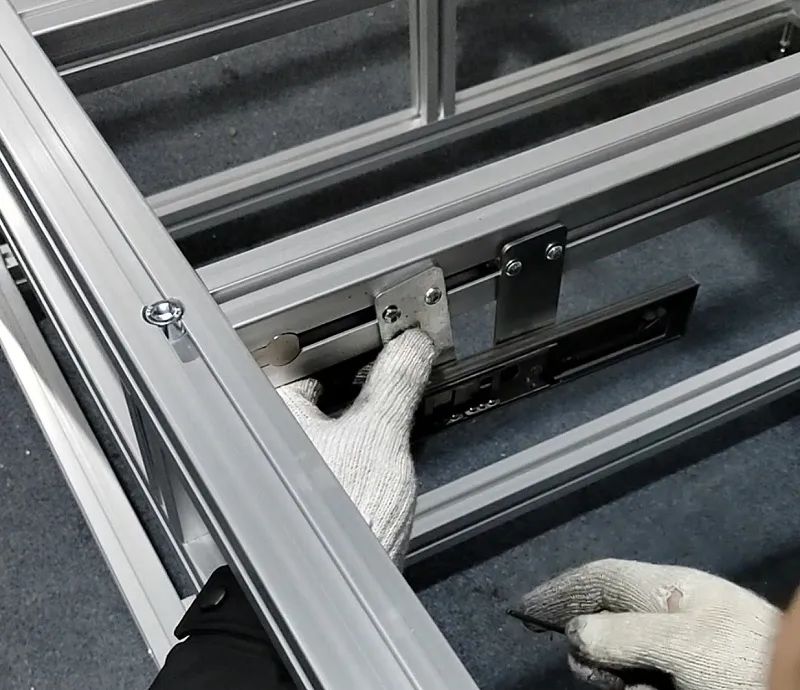

Subsequently, install the larger guide on the aluminum profile where the drawer will be secured. Below is the installation diagram, and it's a straightforward process – simply use bolts and nuts to secure them onto the profile slots.

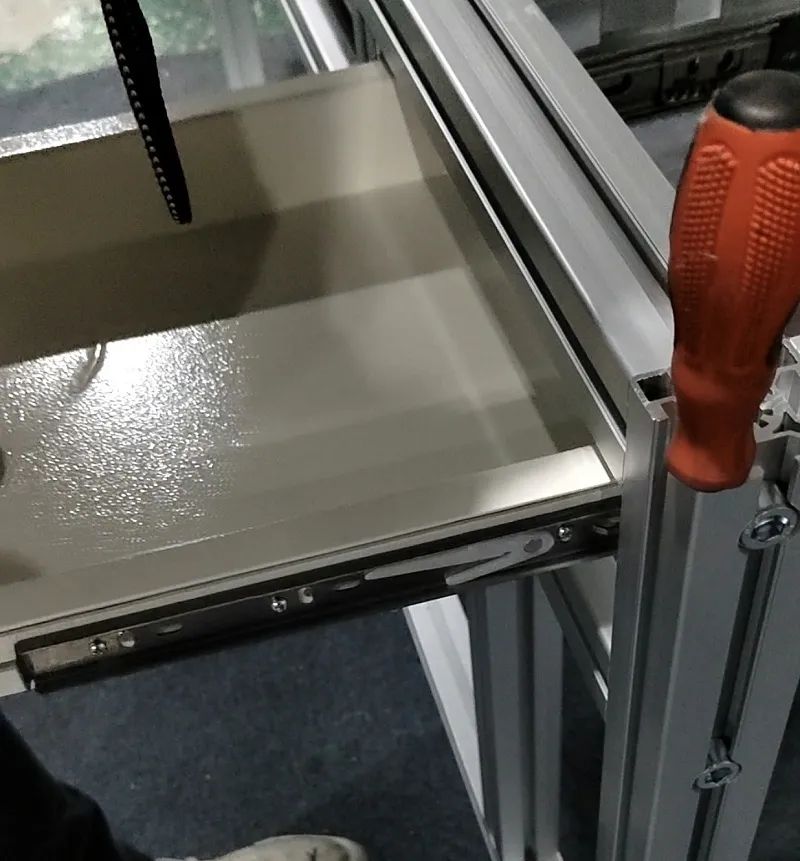

Once the guides on both sides of the profile are installed, you can proceed to install the drawer. Simply place the drawer's guides onto the secured rails on the aluminum profile.

The above outlines the installation process of drawers. While it may seem simple, there are many details to consider, making it somewhat time-consuming. Therefore, many customers prefer having manufacturers assemble and deliver the products, alleviating any installation concerns.

That concludes today's explanation, hoping it proves helpful. For those interested in custom drawer slides, feel free to inquire with Jieyang Citizen Hardware.

Note: The images are for reference purposes only and sourced from the internet.
